Revit二次开发API示例 ExternalResourceDBServer是Revit软件提供的一个允许用户在外部数据库中保存和管理BIM模型资源的工具
583
2024/09/29
应用程序名称：ExternalResourceDBServer
Revit 平台：所有
Revit 版本：2015.0
首次发布于：2015.0
编程语言：C#
技能水平：中等
类别：数据交换
类型：ExternalApplication
主题：示例外部资源服务器
概要：
该示例演示了从IExternalResourceServer接口派生的具体类。该类模拟从远程存储位置中提供关键数据和Revit链接模型的实现，并展示如何从数据库中创建关键数据。
相关类：
Autodesk.Revit.DB.IExternalDBApplication
Autodesk.Revit.DB.IExternalResourceServer
Autodesk.Revit.DB.IGetLocalPathForOpenCallback
Autodesk.Revit.DB.IOnLocalLinkSharedCoordinatesSavedCallback
项目文件：
Application.cs - 包含从IExternalDBApplication接口继承并实现OnStartup和OnShutdown方法的DBApplication类。在OnStartup方法中注册了示例外部资源数据库服务器。
SampleExternalResourceDBServer.cs - 包含SampleExternalResourceDBServer类 - 一个IExternalResourceServer接口的实现。
ServerInterfaceExtensionsForRevitLinks.cs - 包含GetLinkPathForOpen和LocalLinkSharedCoordinatesSaved，它们是其他外部资源服务器接口的实现 - IGetLocalPathForOpenCallback和IOnLocalLinkSharedCoordinatesSavedCallback。这些回调类需要以支持Revit链接。
KeynotesDatabase.cs - 包含KeynotesDatabase类，它是一个“虚拟”的数据库，用于演示如何从任意来源加载关键数据，而不是传统的文本文件。
说明：
此示例提供以下功能。
- 允许最终用户从“远程服务器位置”加载主题演讲数据，而不是从存储在本地可访问驱动器上的文本文件中加载。
- 允许最终用户从“远程服务器位置”链接 Revit 模型，而不是从本地可访问驱动器中链接。
说明：
1. 设置
这份代码样本是为了演示目的，假设“远程服务器位置”实际上是一个文件夹，在该文件夹之下，DLL 由此代码所生成。因此，在构建此代码样本后，确保复制\SampleResourceServerRoot 文件夹和其内容到您放置 DLL 文件的同一个目录下。
2. 从服务器加载主题演讲数据。
a. 启动 Revit 并打开一个模型，或创建一个新项目。
b. 打开主题演讲设置对话框(注释选项卡|主题演讲按钮)。
c. 选择“浏览”。

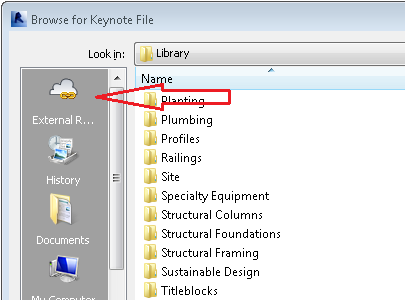

d. 在左侧的位置栏中，选择“外部资源”。
e. 选择 SDK 示例服务器。
f. 浏览服务器上的文件夹，选择要加载的主题演讲资源。注意: 为了演示服务器框架的灵活性，这个示例会检测用户是否使用法语或德语文化环境，并将其浏览定向到一个模拟数据库。其他用户则浏览在第一部分中描述的\SampleResourceServerRoot文件夹下的实际文件夹和文件。
g. 点击“打开”，主题演讲数据应该会加载到 Revit 中。
h. 您可以通过在主题演讲设置对话框中选择“视图”来检查数据。
3. 从服务器链接 Revit 模型。
a. 启动 Revit 并打开一个模型，或创建一个新项目。
b. 从项目浏览器、管理链接对话框或插入选项卡中，添加一个新的 Revit 链接。
c. 从第二部分复制步骤d和e。
d. 浏览“远程服务器”上的目录(实际上只是第一部分所述的\SampleResourceServerRoot文件夹下的文件夹)，选择要链接的Revit模型。
e. 点击“打开”，链接模型应会加载到 Revit 中。
源代码：
Application.cs
//
// (C) Copyright 2003-2019 by Autodesk, Inc. All rights reserved.
//
// Permission to use, copy, modify, and distribute this software in
// object code form for any purpose and without fee is hereby granted
// provided that the above copyright notice appears in all copies and
// that both that copyright notice and the limited warranty and
// restricted rights notice below appear in all supporting
// documentation.
//
// AUTODESK PROVIDES THIS PROGRAM 'AS IS' AND WITH ALL ITS FAULTS.
// AUTODESK SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF
// MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE. AUTODESK, INC.
// DOES NOT WARRANT THAT THE OPERATION OF THE PROGRAM WILL BE
// UNINTERRUPTED OR ERROR FREE.
//
// Use, duplication, or disclosure by the U.S. Government is subject to
// restrictions set forth in FAR 52.227-19 (Commercial Computer
// Software - Restricted Rights) and DFAR 252.227-7013(c)(1)(ii)
// (Rights in Technical Data and Computer Software), as applicable.
using System;
using System.Collections.Generic;
using System.Text;
using System.Windows.Forms;
using System.IO;
using Autodesk;
using Autodesk.Revit;
using Autodesk.Revit.DB;
using Autodesk.Revit.DB.ExternalService;
using Autodesk.Revit.ApplicationServices;
namespace Revit.SDK.Samples.ExternalResourceDBServer.CS
{
/// <summary>
/// <para>Implements the Revit add-in interface IExternalDBApplication.</para>
/// <para>An IExternalResourceServer can be registered at any time during a Revit session.
/// However, the most straightforward approach is to register during start-up, in the
/// OnStartUp method of a Revit external application. Since IExternalResourceServers
/// do not implement any UI directly, they can be registered in a DB-only context,
/// using an IExternalDBApplication.</para>
/// </summary>
public class DBApplication : IExternalDBApplication
{
#region IExternalDBApplication Members
/// <summary>
/// Registers an instance of a SampleExternalResourceDBServer with the ExternalService
/// of type ExternalResourceService.
/// </summary>
/// <param name="application">An object that is passed to the external application
/// which contains the controlled application.</param>
/// <returns>Return the status of the external application. A result of Succeeded
/// means that the external application was able to register the IExternalResourceServer.
/// </returns>
public ExternalDBApplicationResult OnStartup(ControlledApplication application)
{
// Get Revit's ExternalResourceService.
ExternalService externalResourceService = ExternalServiceRegistry.GetService(ExternalServices.BuiltInExternalServices.ExternalResourceService);
if (externalResourceService == null)
return ExternalDBApplicationResult.Failed;
// Create an instance of your IExternalResourceServer and register it with the ExternalResourceService.
IExternalResourceServer sampleServer = new SampleExternalResourceDBServer();
externalResourceService.AddServer(sampleServer);
return ExternalDBApplicationResult.Succeeded;
}
/// <summary>
/// <para>Implements the OnShutdown event.</para>
/// <para>The server implementer may wish to perform clean-up tasks here. However, in the
/// simplest case, no server-related code is required, and the server will be
/// destroyed as Revit shuts down.</para>
/// </summary>
/// <param name="application">An object that is passed to the external application
/// which contains the controlled application.</param>
/// <returns>Return the status of the external application.</returns>
public ExternalDBApplicationResult OnShutdown(ControlledApplication application)
{
return ExternalDBApplicationResult.Succeeded;
}
#endregion IExternalDBApplication Members
}
}
KeynotesDatabase.cs
//
// (C) Copyright 2003-2019 by Autodesk, Inc.
//
// Permission to use, copy, modify, and distribute this software in
// object code form for any purpose and without fee is hereby granted,
// provided that the above copyright notice appears in all copies and
// that both that copyright notice and the limited warranty and
// restricted rights notice below appear in all supporting
// documentation.
//
// AUTODESK PROVIDES THIS PROGRAM "AS IS" AND WITH ALL FAULTS.
// AUTODESK SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF
// MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE. AUTODESK, INC.
// DOES NOT WARRANT THAT THE OPERATION OF THE PROGRAM WILL BE
// UNINTERRUPTED OR ERROR FREE.
//
// Use, duplication, or disclosure by the U.S. Government is subject to
// restrictions set forth in FAR 52.227-19 (Commercial Computer
// Software - Restricted Rights) and DFAR 252.227-7013(c)(1)(ii)
// (Rights in Technical Data and Computer Software), as applicable.
//
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Autodesk.Revit;
using Autodesk.Revit.DB;
namespace Revit.SDK.Samples.ExternalResourceDBServer.CS
{
/// <summary>
/// A "fake" keynote database used to demonstrate how Revit keynote data can
/// be generated without reading from a *.txt file.
/// </summary>
static class KeynotesDatabase
{
/// <summary>
/// Indicates what version of keynote data is currently available from the database.
/// </summary>
public static String CurrentVersion
{
// Assume that the server's keynote data is updated at the beginning of every month.
get { return System.DateTime.Now.ToString("MM-yyyy"); }
}
/// <summary>
/// Validates the specified database 'key.'
/// </summary>
/// <param name="key">A string containing the 'key' to a particular set of keynote data
/// that is available from this 'database.'</param>
/// <returns>True, if the specified 'key' corresponds to a valid set of keynote data in the
/// 'database,' else False.</returns>
public static bool IsValidDBKey(String key)
{
return key == "1" || key == "2" || key == "3" || key == "4";
}
/// <summary>
/// Loads keynote data corresponding to the specified 'key' string into a KeyBasedTreeEntriesLoadContent
/// object.
/// </summary>
/// <param name="key">A string containing the 'key' to a particular set of keynote data
/// that is available from this 'database.'</param>
/// <param name="kdrlc">A KeyBasedTreeEntriesLoadContent object to which the keynote data will be
/// added.</param>
/// <returns></returns>
public static void LoadKeynoteEntries(String key, ref KeyBasedTreeEntriesLoadContent kdrlc)
{
if (!IsValidDBKey(key))
throw new ArgumentOutOfRangeException("key", key, "The specified key cannot be found in the database");
if (kdrlc == null)
throw new ArgumentNullException("kdrlc");
switch(key)
{
case "1":
{
// German 1
kdrlc.AddEntry(new KeynoteEntry("01", "", "Dienstleistungen, Produktionen"));
kdrlc.AddEntry(new KeynoteEntry("01.01", "01", "Fuhrparkkosten"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01", "01.01", "Frachten"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.01", "01.01.01", "Eigene Fracht"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02", "01.01.01", "Fremdfracht"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.99", "01.01.01", "Sonstige - Fracht"));
kdrlc.AddEntry(new KeynoteEntry("01.01.02" , "01.01", "Fuhrparkleistungen"));
kdrlc.AddEntry(new KeynoteEntry("01.01.02.01", "01.01.02", "Eigener Fuhrpark"));
kdrlc.AddEntry(new KeynoteEntry("01.01.02.02", "01.01.02", "Fremder Fuhrpark"));
kdrlc.AddEntry(new KeynoteEntry("01.01.02.99", "01.01.02", "Sonstige - Fuhrparkleistung"));
kdrlc.AddEntry(new KeynoteEntry("01.01.03" , "01.01", "Kran und Stapler"));
kdrlc.AddEntry(new KeynoteEntry("01.01.03.01", "01.01.03", "Kranentladung"));
kdrlc.AddEntry(new KeynoteEntry("01.01.03.02", "01.01.03", "Staplerkosten"));
kdrlc.AddEntry(new KeynoteEntry("01.01.03.99", "01.01.03", "Sonstiger - Kran und Stapler"));
kdrlc.AddEntry(new KeynoteEntry("01.02", "01", "Handwerkliche Leistungen"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01", "01.02", "Allgemeine Bauarbeiten"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.01", "01.02.01", "Dachdeckungsarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.02", "01.02.01", "Elektroinstallation"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.03", "01.02.01", "Erdarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.04", "01.02.01", "Klempnerarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.05", "01.02.01", "Rohbau"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.06", "01.02.01", "Sanitär- und Heizungsbauarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.07", "01.02.01", "Trockenbauarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.08", "01.02.01", "Verglasungsarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.99", "01.02.01", "Sonstige - allgem. Bauarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02", "01.02", "Belagsarbeiten"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01", "01.02.02", "Asphaltarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02", "01.02.02", "Estricharbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.03", "01.02.02", "Mineralgemischeinbringung"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.04", "01.02.02", "Natursteinarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.99", "01.02.02", "Sonstige - Belagsarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.03", "01.02", "Betonarbeiten"));
kdrlc.AddEntry(new KeynoteEntry("01.02.03.01", "01.02.03", "Betoninstandhaltung"));
kdrlc.AddEntry(new KeynoteEntry("01.02.03.02", "01.02.03", "Betonsanierung"));
kdrlc.AddEntry(new KeynoteEntry("01.02.03.99", "01.02.03", "Sonstige - Betonarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.04", "01.02", "Montage"));
kdrlc.AddEntry(new KeynoteEntry("01.02.04.01", "01.02.04", "Dachmontage"));
kdrlc.AddEntry(new KeynoteEntry("01.02.04.02", "01.02.04", "Fenstermontage"));
kdrlc.AddEntry(new KeynoteEntry("01.02.04.03", "01.02.04", "Montagewand-/Unterdeckenmontage"));
kdrlc.AddEntry(new KeynoteEntry("01.02.04.04", "01.02.04", "Türenmontage"));
kdrlc.AddEntry(new KeynoteEntry("01.02.04.99", "01.02.04", "Sonstige - Montage"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05", "01.02", "Verlegung"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05.01", "01.02.05", "Fliesenverlegung"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05.02", "01.02.05", "Parkett- und Laminatverlegung"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05.03", "01.02.05", "Pflasterarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05.04", "01.02.05", "Plattenverlegung"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05.05", "01.02.05", "PVC-Verlegung"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05.06", "01.02.05", "Tapezierarbeit"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05.07", "01.02.05", "Teppichverlegung"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05.08", "01.02.05", "Wand- und Deckenvertäfelung"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05.99", "01.02.05", "Sonstige - Verlegung"));
break;
}
case "2":
{
// German 2
kdrlc.AddEntry(new KeynoteEntry("02", "", "Schüttgüter"));
kdrlc.AddEntry(new KeynoteEntry("02.01", "02", "Schüttungen, Asche, Salze"));
kdrlc.AddEntry(new KeynoteEntry("02.01.01", "02.01", "Abraum"));
kdrlc.AddEntry(new KeynoteEntry("02.01.01.01", "02.01.01", "Humus"));
kdrlc.AddEntry(new KeynoteEntry("02.01.01.02", "02.01.01", "Mutterboden"));
kdrlc.AddEntry(new KeynoteEntry("02.01.01.03", "02.01.01", "Schotter"));
kdrlc.AddEntry(new KeynoteEntry("02.01.01.04", "02.01.01", "Torf"));
kdrlc.AddEntry(new KeynoteEntry("02.01.01.99", "02.01.01", "Sonstiger - Abraum"));
kdrlc.AddEntry(new KeynoteEntry("02.01.02", "02.01", "Asche"));
kdrlc.AddEntry(new KeynoteEntry("02.01.02.01", "02.01.02", "Steinkohlenflugasche"));
kdrlc.AddEntry(new KeynoteEntry("02.01.02.99", "02.01.02", "Sonstige - Asche"));
kdrlc.AddEntry(new KeynoteEntry("02.01.03", "02.01", "Bims"));
kdrlc.AddEntry(new KeynoteEntry("02.01.03.01", "02.01.03", "Hüttenbims"));
kdrlc.AddEntry(new KeynoteEntry("02.01.03.02", "02.01.03", "Naturbims"));
kdrlc.AddEntry(new KeynoteEntry("02.01.03.99", "02.01.03", "Sonstiger - Bims"));
kdrlc.AddEntry(new KeynoteEntry("02.01.04", "02.01", "Kies, Kiessand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.04.01", "02.01.04", "Kies"));
kdrlc.AddEntry(new KeynoteEntry("02.01.04.01.A1", "02.01", "Kies"));
kdrlc.AddEntry(new KeynoteEntry("02.01.04.02", "02.01.04", "Kiessand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.04.02.A2", "02.01", "Kiessand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.04.99", "02.01.04", "Sonstiger - Kies/Kiessand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.05", "02.01", "Mineral und Salz"));
kdrlc.AddEntry(new KeynoteEntry("02.01.05.01", "02.01.05", "Mineralstoffgemisch"));
kdrlc.AddEntry(new KeynoteEntry("02.01.05.02", "02.01.05", "Salz"));
kdrlc.AddEntry(new KeynoteEntry("02.01.05.99", "02.01.05", "Sonstiges - Mineral/Salz"));
kdrlc.AddEntry(new KeynoteEntry("02.01.06", "02.01", "Sandsorten"));
kdrlc.AddEntry(new KeynoteEntry("02.01.06.01", "02.01.06", "Quarzsand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.06.01.A3", "02.01", "Quarzsand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.06.02", "02.01.06", "Sand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.06.02.A4", "02.01", "Sand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.06.03", "02.01.06", "Tennissand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.06.03.A5", "02.01", "Tennissand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.06.99", "02.01.06", "Sonstige - Sandsorte"));
kdrlc.AddEntry(new KeynoteEntry("02.01.07", "02.01", "Schlacke"));
kdrlc.AddEntry(new KeynoteEntry("02.01.07.01", "02.01.07", "Hüttenofenschlacke"));
kdrlc.AddEntry(new KeynoteEntry("02.01.07.02", "02.01.07", "Lavaschlacke"));
kdrlc.AddEntry(new KeynoteEntry("02.01.07.03", "02.01.07", "Schmelzkammerschlacke"));
kdrlc.AddEntry(new KeynoteEntry("02.01.07.99", "02.01.07", "Sonstige - Schlacke"));
kdrlc.AddEntry(new KeynoteEntry("02.01.08", "02.01", "Splittsorten"));
kdrlc.AddEntry(new KeynoteEntry("02.01.08.01", "02.01.08", "Splitt"));
kdrlc.AddEntry(new KeynoteEntry("02.01.08.01.A6", "02.01", "Splitt"));
kdrlc.AddEntry(new KeynoteEntry("02.01.08.02", "02.01.08", "Splittsand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.08.02.A7", "02.01", "Splittsand"));
kdrlc.AddEntry(new KeynoteEntry("02.01.08.03", "02.01.08 ", "Ziegelsplitt"));
kdrlc.AddEntry(new KeynoteEntry("02.01.08.03.A8", "02.01", "Ziegelsplitt"));
kdrlc.AddEntry(new KeynoteEntry("02.01.08.99", "02.01.08", "Sonstige - Splittsorte"));
kdrlc.AddEntry(new KeynoteEntry("02.01.50", "02.01", "Gewachsener Boden"));
kdrlc.AddEntry(new KeynoteEntry("02.01.50.01", "02.01.50", "Gewachsener Boden"));
kdrlc.AddEntry(new KeynoteEntry("02.01.50.01.A10","02.01", "Gewachsener Boden"));
kdrlc.AddEntry(new KeynoteEntry("02.01.50.01.A7", "02.01", "Gewachsener Boden"));
kdrlc.AddEntry(new KeynoteEntry("02.01.51", "02.01", "Schotter"));
kdrlc.AddEntry(new KeynoteEntry("02.01.51.01", "02.01.51", "Schotter"));
kdrlc.AddEntry(new KeynoteEntry("02.01.51.01.A6", "02.01", "Schotter"));
kdrlc.AddEntry(new KeynoteEntry("02.01.51.01.A9", "02.01", "Schotter"));
kdrlc.AddEntry(new KeynoteEntry("02.99", "02", "Sonstiges"));
break;
}
case "3":
{
// French 1
kdrlc.AddEntry(new KeynoteEntry("01", "", "VRD Assainissement"));
kdrlc.AddEntry(new KeynoteEntry("01.01", "01", "Amélioration et stabilisation des sols"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01", "01.01", "Assainissement des sols"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.01", "01.01.01", "Drain"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.01.A1", "01.01.01.01", "Tube de drainage PVC 200"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.01.A2", "01.01.01.01", "Tube de drainage PVC 150"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.01.A3", "01.01.01.01", "Tube de drainage PVC 100"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.01.A4", "01.01.01.01", "Tube de drainage terre-cuite 80"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.01.A5", "01.01.01.01", "Tube de drainage terre-cuite 100"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.01.A6", "01.01.01.01", "Tube de drainage PVC annelé 80"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.01.A7", "01.01.01.01", "Tube de drainage PVC annelé 100"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02", "01.01.01", "Nappe drainante"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02.A1", "01.01.01.02", "Nappe drainante 6"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02.A2", "01.01.01.02", "Nappe drainante 8"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02.A3", "01.01.01.02", "Nappe drainante 10"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02.A4", "01.01.01.02", "Nappe drainante 12"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02.A5", "01.01.01.02", "Nappe drainante 14"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02.A6", "01.01.01.02", "Nappe drainante 18"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02.A7", "01.01.01.02", "Nappe drainante 20"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02.A8", "01.01.01.02", "Nappe drainante 24"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.02.A9", "01.01.01.02", "Nappe drainante 28"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03", "01.01.01", "Matériau de drainage"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03.A1", "01.01.01.03", "Drainage Gravier"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03.A10", "01.01.01.03", "Drainage Terre naturelle"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03.A2", "01.01.01.03", "Drainage Gravier de compactage"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03.A3", "01.01.01.03", "Drainage Sable de quartz"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03.A4", "01.01.01.03", "Drainage Sable"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03.A5", "01.01.01.03", "Drainage Sable de court de tennis"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03.A6", "01.01.01.03", "Drainage Gravillon"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03.A7", "01.01.01.03", "Drainage Gravillon de compactage"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03.A8", "01.01.01.03", "Drainage Grave concassé"));
kdrlc.AddEntry(new KeynoteEntry("01.01.01.03.A9", "01.01.01.03", "Drainage Pierraille"));
kdrlc.AddEntry(new KeynoteEntry("01.01.02", "01.01", "Apport d'autre sol"));
kdrlc.AddEntry(new KeynoteEntry("01.01.03", "01.01", "Traitement chimique des sols"));
kdrlc.AddEntry(new KeynoteEntry("01.01.04", "01.01", "Compactage"));
kdrlc.AddEntry(new KeynoteEntry("01.01.05", "01.01", "Stabilisation de remblais"));
kdrlc.AddEntry(new KeynoteEntry("01.02", "01", "Voirie"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01", "01.02", "Revêtement de voirie"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.01", "01.02.01", "Revt de voirie Enrobé"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.01.A1", "01.02.01.01", "Couche Asphalte"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.01.A2", "01.02.01.01", "Couche Ciment"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.01.A3", "01.02.01.01", "Couche Anhydrite"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.01.A4", "01.02.01.01", "Couche Bitume"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.01.A5", "01.02.01.01", "Couche Gypse"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.01.A6", "01.02.01.01", "Couche Résine"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.01.A7", "01.02.01.01", "Couche Magnésien"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.02", "01.02.01", "Revt de voirie Béton"));
kdrlc.AddEntry(new KeynoteEntry("01.02.01.03", "01.02.01", "Revt de voirie Pavage"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02", "01.02", "Bordure et caniveau"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01", "01.02.02", "Bordure"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01", "01.02.02.01", "Bordure en béton"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A1", "01.02.02.01", "Bordure normalisée T1"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A10", "01.02.02.01", "Bordure haute 12x30"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A11", "01.02.02.01", "Bordure haute 12x25"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A12", "01.02.02.01", "Bordure arrondie 13,5x22"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A13", "01.02.02.01", "Bordure arrondie 16,5x22"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A15", "01.02.02.01", "Bordure basse 6,5x20"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A16", "01.02.02.01", "Bordure basse 8,5x25"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A17", "01.02.02.01", "Bordure basse 8,5x30"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A18", "01.02.02.01", "Bloc pour gazon 5x20"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A19", "01.02.02.01", "Bloc pour gazon 5x25"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A2", "01.02.02.01", "Bordure normalisée T2"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A3", "01.02.02.01", "Bordure normalisée T3"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A4", "01.02.02.01", "Bordure normalisée T4"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A5", "01.02.02.01", "Bordure normalisée A1"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A6", "01.02.02.01", "Bordure normalisée A2"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A7", "01.02.02.01", "Bordure normalisée P1"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A8", "01.02.02.01", "Bordure haute 15x30"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.01.A9", "01.02.02.01", "Bordure haute 15x25"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.02", "01.02.02.01", "Bordure bateau en béton"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.02.D1", "01.02.02.01", "Bordure bateau en béton 300x250"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.02.D2", "01.02.02.01", "Bordure centrale bateau en béton 300x250"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.03", "01.02.02.01", "Bordure en pierre naturelle"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.03.A1", "01.02.02.01", "Bordure pierre naturelle 80x250"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.03.A2", "01.02.02.01", "Bordure pierre naturelle 100x300"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.03.A3", "01.02.02.01", "Bordure pierre granitique 80x250"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.01.03.A4", "01.02.02.01", "Bordure pierre granitique 100x300"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02", "01.02.02", "Caniveau"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02.01", "01.02.02.02", "Caniveau bloc central"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02.01.C1", "01.02.02.02", "Caniveau central 40x100x12 - CC1"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02.01.C2", "01.02.02.02", "Caniveau central 50x100x14 - CC2"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02.01.C3", "01.02.02.02", "Caniveau central 30x40x9"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02.01.C4", "01.02.02.02", "Caniveau central 40x40x11,5"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02.01.C5", "01.02.02.02", "Caniveau central 50x40x13,5"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02.01.C6", "01.02.02.02", "Caniveau central 30x30x12"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02.02", "01.02.02.02", "Caniveau bloc de bordure"));
kdrlc.AddEntry(new KeynoteEntry("01.02.02.02.02.D1", "01.02.02.02", "Caniveau en bordure 300x175x125"));
kdrlc.AddEntry(new KeynoteEntry("01.02.03", "01.02", "Marquage et signalisation"));
kdrlc.AddEntry(new KeynoteEntry("01.02.04", "01.02", "Contrôle d'accès"));
kdrlc.AddEntry(new KeynoteEntry("01.02.05", "01.02", "Eqt de sécurité"));
kdrlc.AddEntry(new KeynoteEntry("01.02.06", "01.02", "Eqt de chantier"));
kdrlc.AddEntry(new KeynoteEntry("01.02.07", "01.02", "Eqt divers"));
break;
}
case "4":
{
// French 2
kdrlc.AddEntry(new KeynoteEntry("02", "", "Aménagement ext"));
kdrlc.AddEntry(new KeynoteEntry("02.01", "02", "Eclairage d'ext et commande (voir 190402)"));
kdrlc.AddEntry(new KeynoteEntry("02.02", "02", "Mobilier et eqt urbain"));
kdrlc.AddEntry(new KeynoteEntry("02.02.01", "02.02", "Stockage des ordures (voir 24.09.04)"));
kdrlc.AddEntry(new KeynoteEntry("02.02.02", "02.02", "Kiosque de jardin"));
kdrlc.AddEntry(new KeynoteEntry("02.02.03", "02.02", "Siège et banc public, table"));
kdrlc.AddEntry(new KeynoteEntry("02.02.04", "02.02", "Jardinière, bac, vasque, ..."));
kdrlc.AddEntry(new KeynoteEntry("02.02.05", "02.02", "Borne à eau, fontaine"));
kdrlc.AddEntry(new KeynoteEntry("02.02.06", "02.02", "Abris bus"));
kdrlc.AddEntry(new KeynoteEntry("02.02.07", "02.02", "Abris bicyclette et moto, porte bicyclette"));
kdrlc.AddEntry(new KeynoteEntry("02.02.08", "02.02", "Cabine téléphonique exte"));
kdrlc.AddEntry(new KeynoteEntry("02.02.09", "02.02", "Panneau d'affichage ext"));
kdrlc.AddEntry(new KeynoteEntry("02.03", "02", "Parc et jardin (eqt), espace de rencontre"));
kdrlc.AddEntry(new KeynoteEntry("02.03.01", "02.03", "Abris jardin"));
kdrlc.AddEntry(new KeynoteEntry("02.03.02", "02.03", "Tonnelle et pergola"));
kdrlc.AddEntry(new KeynoteEntry("02.03.03", "02.03", "Véranda, verrière, serre (voir 1811)"));
kdrlc.AddEntry(new KeynoteEntry("02.03.04", "02.03", "Bordure de jardin"));
kdrlc.AddEntry(new KeynoteEntry("02.03.05", "02.03", "Bac à sable"));
kdrlc.AddEntry(new KeynoteEntry("02.03.06", "02.03", "Bassin décoratif"));
kdrlc.AddEntry(new KeynoteEntry("02.03.07", "02.03", "Arrosage de jardin (dispositif et access)"));
kdrlc.AddEntry(new KeynoteEntry("02.03.08", "02.03", "Grille et protection d'arbre"));
kdrlc.AddEntry(new KeynoteEntry("02.03.09", "02.03", "Mât de pavillon, pavillon, drapeau"));
kdrlc.AddEntry(new KeynoteEntry("02.03.10", "02.03", "Treillage, support de plante"));
kdrlc.AddEntry(new KeynoteEntry("02.03.11", "02.03", "Mobilier de jardin"));
kdrlc.AddEntry(new KeynoteEntry("02.04", "02", "Sport et loisir, espace de jeu (eqt)"));
kdrlc.AddEntry(new KeynoteEntry("02.04.01", "02.04", "Jeux aquatiques"));
kdrlc.AddEntry(new KeynoteEntry("02.04.02", "02.04", "Jeux pour enfant"));
kdrlc.AddEntry(new KeynoteEntry("02.04.03", "02.04", "Golf miniature"));
kdrlc.AddEntry(new KeynoteEntry("02.04.04", "02.04", "Piste de skateboard"));
kdrlc.AddEntry(new KeynoteEntry("02.04.05", "02.04", "Court de squash"));
kdrlc.AddEntry(new KeynoteEntry("02.04.06", "02.04", "Piscine (eqt et access),"));
kdrlc.AddEntry(new KeynoteEntry("02.04.07", "02.04", "Sanitaire (appareil) (voir 2004)"));
kdrlc.AddEntry(new KeynoteEntry("02.04.08", "02.04", "Court de tennis"));
kdrlc.AddEntry(new KeynoteEntry("02.04.09", "02.04", "Piste de patinoire"));
kdrlc.AddEntry(new KeynoteEntry("02.04.10", "02.04", "Gymnase (eqt sportif et)"));
kdrlc.AddEntry(new KeynoteEntry("02.04.11", "02.04", "Borne pour camping"));
kdrlc.AddEntry(new KeynoteEntry("02.04.12", "02.04", "Mur d'escalade"));
kdrlc.AddEntry(new KeynoteEntry("02.04.13", "02.04", "Station de ski (eqt)"));
kdrlc.AddEntry(new KeynoteEntry("02.04.14", "02.04", "Tribune et podium"));
kdrlc.AddEntry(new KeynoteEntry("02.04.15", "02.04", "Barbecue fixe"));
kdrlc.AddEntry(new KeynoteEntry("02.04.16", "02.04", "Gradin de stade"));
kdrlc.AddEntry(new KeynoteEntry("02.04.17", "02.04", "Port de plaisance (eqt)"));
kdrlc.AddEntry(new KeynoteEntry("02.05", "02", "Structure mobile, légère, provisoire (voir 0702)"));
kdrlc.AddEntry(new KeynoteEntry("02.06", "02", "Espace vert et plantation"));
kdrlc.AddEntry(new KeynoteEntry("02.07", "02", "Ouvrage ext (eqt)"));
kdrlc.AddEntry(new KeynoteEntry("02.07.01", "02.07", "Clôture et mur d'enceinte, poteau de clôture"));
kdrlc.AddEntry(new KeynoteEntry("02.07.02", "02.07", "Portail, portillon et access"));
kdrlc.AddEntry(new KeynoteEntry("02.07.03", "02.07", "Protection des ouvrages (choc)"));
kdrlc.AddEntry(new KeynoteEntry("02.07.04", "02.07", "Ecran antibruit (routier, ferroviaire)"));
kdrlc.AddEntry(new KeynoteEntry("02.07.05", "02.07", "Métallerie de sûreté (voir 2302)"));
kdrlc.AddEntry(new KeynoteEntry("02.07.06", "02.07", "Garde-corps (voir 1805)"));
kdrlc.AddEntry(new KeynoteEntry("02.07.07", "02.07", "Ferronnerie d'art et décorative (voir 1806)"));
kdrlc.AddEntry(new KeynoteEntry("02.07.08", "02.07", "Pont, passerelle, appui"));
kdrlc.AddEntry(new KeynoteEntry("02.07.09", "02.07", "Revt de sol et mur pierre, ciment (voir 1608)"));
kdrlc.AddEntry(new KeynoteEntry("02.07.10", "02.07", "Boîte aux lettres et access (voir 1809)"));
kdrlc.AddEntry(new KeynoteEntry("02.07.11", "02.07", "Câble, corde, grillage, filet (voir 2510)"));
kdrlc.AddEntry(new KeynoteEntry("02.07.12", "02.07", "Etendoir, poteau d'étendage"));
kdrlc.AddEntry(new KeynoteEntry("02.99", "02", "Prestations en aménagement ext (voir 2702)"));
break;
}
}
}
}
}
SampleExternalResourceDBServer.cs
//
// (C) Copyright 2003-2019 by Autodesk, Inc.
//
// Permission to use, copy, modify, and distribute this software in
// object code form for any purpose and without fee is hereby granted,
// provided that the above copyright notice appears in all copies and
// that both that copyright notice and the limited warranty and
// restricted rights notice below appear in all supporting
// documentation.
//
// AUTODESK PROVIDES THIS PROGRAM "AS IS" AND WITH ALL FAULTS.
// AUTODESK SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF
// MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE. AUTODESK, INC.
// DOES NOT WARRANT THAT THE OPERATION OF THE PROGRAM WILL BE
// UNINTERRUPTED OR ERROR FREE.
//
// Use, duplication, or disclosure by the U.S. Government is subject to
// restrictions set forth in FAR 52.227-19 (Commercial Computer
// Software - Restricted Rights) and DFAR 252.227-7013(c)(1)(ii)
// (Rights in Technical Data and Computer Software), as applicable.
//
using System;
using System.Collections.Generic;
using System.Globalization;
using System.IO;
using System.Linq;
using System.Text;
using Autodesk.Revit;
using Autodesk.Revit.DB;
using Autodesk.Revit.DB.ExternalService;
namespace Revit.SDK.Samples.ExternalResourceDBServer.CS
{
/// <summary>
/// <para>Derive from the IExternalResourceServer interface to create a server class
/// for providing external resources (files or data) to Revit. This example server
/// provides both keynote data and Revit links.</para>
/// <para>The external resource framework has been designed so that the end user
/// loads external resources by browsing with an "open file" dialog. When the user
/// chooses an external resource server, the file dialog will display the contents
/// of the server's "root folder." From there, the user can navigate through a system
/// of folders and files specified by the IExternalResourceServer implementation. The
/// files and folders might be the actual contents of a directory tree only accessible
/// by the server, or might be some other logical structure relevant to the resource
/// that is being loaded.</para>
/// <para>To demonstrate the flexibility of the framework, this example server retrieves
/// keynote data from a fictitious database for users in France and Germany, and from
/// files for all other users. Revit link models are also obtained from files. To keep
/// the demonstration simple, the "root" folder for file-based resources is assumed to be
/// \SampleResourceServerRoot, located immediately under the directory where the DLL for
/// this project is placed. See the separate *.rtf file for additional documentation.</para>
/// </summary>
public class SampleExternalResourceDBServer : IExternalResourceServer
{
/// <summary>
/// Default constructor
/// </summary>
public SampleExternalResourceDBServer()
{ }
// Methods that must be implemented by a server for any of Revit's external services
#region IExternalServer Implementation
/// Indicate which of Revit's external services this server supports.
/// Servers derived from IExternalResourceServer *must* return
/// ExternalServices.BuiltInExternalServices.ExternalResourceService.
public ExternalServiceId GetServiceId()
{
return ExternalServices.BuiltInExternalServices.ExternalResourceService;
}
/// Uniquely identifies this server to Revit's ExternalService registry
public System.Guid GetServerId()
{
return new Guid("5F3CAA13-F073-4F93-BDC2-B7F4B806CDAF");
}
/// <summary>
/// Implement this method to return the name of the server.
/// </summary>
public System.String GetName()
{
return "SDK Sample ExtRes Server";
}
/// <summary>
/// # Implement this method to return the id of the vendor of the server.
/// </summary>
public System.String GetVendorId()
{
return "ADSK";
}
/// <summary>
/// Provide a short description of the server for display to the end user.
/// </summary>
public System.String GetDescription()
{
return "A Revit SDK sample external resource server which provides keynote data and Revit links.";
}
#endregion IExternalServer Implementation
/// Methods implemented specifically by servers for the ExternalResource service
#region IExternalResourceServer Implementation
public string GetShortName()
{
return GetName();
}
/// <summary>
/// Returns a URL address of the provider of this Revit add-in.
/// </summary>
public virtual String GetInformationLink()
{
return "http://www.autodesk.com";
}
/// <summary>
/// Specify an image to be displayed in browser dialogs when the end user is selecting a resource to load into Revit.
/// </summary>
/// <returns>A string containing the full path to an icon file containing 48x48, 32x32 and 16x16 pixel images.</returns>
public string GetIconPath()
{
return string.Empty;
}
/// <summary>
/// IExternalResourceServer classes can support more than one type of external resource.
/// This one supports keynotes and Revit links.
/// </summary>
public bool SupportsExternalResourceType(ExternalResourceType resourceType)
{
return (resourceType == ExternalResourceTypes.BuiltInExternalResourceTypes.KeynoteTable
||
resourceType == ExternalResourceTypes.BuiltInExternalResourceTypes.RevitLink);
}
/// <summary>
/// Return a list of resources and sub folders under a folder.
/// The Revit user always loads external resources by browsing with a file navigation
/// dialog, much like they would when selecting files on a locally-accessible drive.
/// The SetupBrowserData method allows the server implementer to simulate an organized
/// system of files and folders to support browsing for external resources.
/// Purely for demonstration purposes, this sample server obtains its keynote data from
/// a "database," and creates a "fake" directory structure for either German or French users
/// to browse keynote data. However, for all other users - and for Revit Links, file browsing
/// data is generated using actual files on in a folder location under the directory containing
/// this DLL.
/// </summary>
public void SetupBrowserData(ExternalResourceBrowserData browserData)
{
ExternalResourceMatchOptions matchOptions = browserData.GetMatchOptions();
ExternalResourceType resourceType = matchOptions.ResourceType;
CultureInfo currentCulture = CultureInfo.CurrentCulture;
String currentCultureName = currentCulture.ToString();
// Revit will call SupportsExternalResourceType() before calling this method, so we
// can assume that resourceType will be KeynoteTable or RevitLink.
if (resourceType == ExternalResourceTypes.BuiltInExternalResourceTypes.KeynoteTable
&&
(currentCultureName == "de-DE" || currentCultureName == "fr-FR"))
{
// French and German Keynote Data Are Obtained From a "Database"
SetupKeynoteDatabaseBrowserData(browserData, currentCultureName);
}
else
{
// Keynote Data in Other Languages, and Revit Links, are Obtained From File
SetupFileBasedBrowserData(browserData);
}
}
/// <summary>
/// Checks whether the given ExternalResourceReference is formatted correctly for this server.
/// The format should match one of the formats created in the SetupBrowserData method.
/// </summary>
public bool IsResourceWellFormed(ExternalResourceReference extRef)
{
if ( extRef.ServerId != GetServerId() )
return false;
if ( !extRef.HasValidDisplayPath() )
return false;
// Either the ExternalResourceReference has a valid database key (German/French keynote case) ...
IDictionary<string, string> refMap = extRef.GetReferenceInformation();
if (refMap.ContainsKey(RefMapDBKeyEntry))
{
return KeynotesDatabase.IsValidDBKey(refMap[RefMapDBKeyEntry]);
}
else if (refMap.ContainsKey(RefMapLinkPathEntry)) // ... OR it is a Revit link file
{
return File.Exists(GetFullServerLinkFilePath(extRef));
}
// ... OR it is a keynote file (non- French/German cases).
return File.Exists(GetFullServerKeynoteFilePath(extRef));
}
/// <summary>
/// Implement this method to compare two ExternalResourceReferences.
/// </summary>
/// <param name="referenceInformation_1">The string-string IDictionary of reference information stored in one ExternalResourceReference</param>
/// <param name="referenceInformation_2">The string-string IDictionary of reference information stored in a second ExternalResourceReference</param>
/// <returns></returns>
public virtual bool AreSameResources(IDictionary<string, string> referenceInformation_1, IDictionary<string, string> referenceInformation_2)
{
bool same = true;
if (referenceInformation_1.Count != referenceInformation_2.Count)
{
same = false;
}
else
{
foreach (string key in referenceInformation_1.Keys)
{
if (!referenceInformation_2.ContainsKey(key) || referenceInformation_1[key] != referenceInformation_2[key])
{
same = false;
break;
}
}
}
return same;
}
/// <summary>
/// Servers can override the name for UI purposes, but here we just return the names that we
/// used when we first created the Resources in SetupBrowserData().
/// </summary>
public String GetInSessionPath(ExternalResourceReference err, String savedPath)
{
return savedPath;
}
/// <summary>
/// Loads the resources.
/// </summary>
/// <param name="loadRequestId">A GUID that uniquely identifies this resource load request from Revit.</param>
/// <param name="resourceType">The type of external resource that Revit is asking the server to load.</param>
/// <param name="resourceReference">An ExternalResourceReference identifying which particular resource to load.</param>
/// <param name="loadContext">Context information, including the name of Revit document that is calling the server,
/// </param>the resource that is currently loaded and the type of load operation (automatic or user-driven).
/// <param name="loadContent">An ExternalResourceLoadContent object that will be populated with load data by the
/// server. There are different subclasses of ExternalResourceLoadContent for different ExternalResourceTypes.</param>
public void LoadResource(Guid loadRequestId, ExternalResourceType resourceType, ExternalResourceReference resourceReference, ExternalResourceLoadContext loadContext, ExternalResourceLoadContent loadContent)
{
loadContent.LoadStatus = ExternalResourceLoadStatus.Failure;
// The following checks can help with testing. However, they should not be necessary, since Revit checks all input paramters
// before calling this method.
if (loadRequestId == null)
throw new ArgumentNullException("loadRequestId");;
if (resourceType == null)
throw new ArgumentNullException("resourceType");;
if (resourceReference == null)
throw new ArgumentNullException("resourceReference");;
if (loadContext == null)
throw new ArgumentNullException("loadContext");;
if (loadContent == null)
throw new ArgumentNullException("loadContent");;
if (!SupportsExternalResourceType(resourceType))
throw new ArgumentOutOfRangeException("resourceType", "The specified resource type is not supported by this server.");
// The server indicates what version of the resource is being loaded.
loadContent.Version = GetCurrentlyAvailableResourceVersion(resourceReference);
// resourceReference is for Keynote Data
if (resourceType == ExternalResourceTypes.BuiltInExternalResourceTypes.KeynoteTable)
{
LoadKeynoteDataResource(resourceReference, loadContent);
}
else // resourceReference is a Revit Link
{
LoadRevitLink(resourceReference, loadContent);
}
}
/// <summary>
/// Indicates whether the given version of a resource is the most current
/// version of the data.
/// </summary>
/// <param name="extRef">The ExternalResourceReference to check.</param>
/// <returns>An enum indicating whether the resource is current, out of date, or of unknown status</returns>
public ResourceVersionStatus GetResourceVersionStatus(ExternalResourceReference extRef)
{
// Determine whether currently loaded version is out of date, and return appropriate status.
String currentlyLoadedVersion = extRef.Version;
if (currentlyLoadedVersion == String.Empty)
return ResourceVersionStatus.Unknown;
return currentlyLoadedVersion == GetCurrentlyAvailableResourceVersion(extRef) ? ResourceVersionStatus.Current
: ResourceVersionStatus.OutOfDate;
}
/// <summary>
/// Implement this to extend the base IExternalResourceServer interface with additional methods
/// that are specific to particular types of external resource (for example, Revit Links).
/// NOTE: There are no extension methods required for keynote resources.
/// </summary>
/// <param name="extensions">An ExternalResourceServerExtensions object that can be populated with
/// sub-interface objects which can perform operations related to specific types of External Resource.</param>
public virtual void GetTypeSpecificServerOperations(ExternalResourceServerExtensions extensions)
{
RevitLinkOperations revitLinkOps = extensions.GetRevitLinkOperations();
revitLinkOps.SetGetLocalPathForOpenCallback(new GetLinkPathForOpen());
revitLinkOps.SetOnLocalLinkSharedCoordinatesSavedCallback(new LocalLinkSharedCoordinatesSaved());
}
#endregion IExternalResourceServer Implementation
#region SampleExternalResourceDBServer Implementation
/// <summary>
/// <para>Returns the path of the server's root folder. The contents of this folder will be displayed
/// when the user first selects this server while browsing to load keynote data or a Revit link
/// (unless the user loading keynote data is in France or Germany).</para>
/// <para>For this example server, the root folder is simply a directory immediately under the folder
/// where the DLL for this assembly is located.</para>
/// </summary>
private static String RootFolder
{
get
{
string assemblyFolder = Path.GetDirectoryName(System.Reflection.Assembly.GetExecutingAssembly().Location);
string rootFolderName = assemblyFolder + "\\SampleResourceServerRoot";
DirectoryInfo rootFolder = new DirectoryInfo(rootFolderName);
if (!rootFolder.Exists)
rootFolder.Create();
return rootFolderName;
}
}
/// <summary>
/// Returns the string used to access the French and German keynotes database key that is
/// stored in an ExternalResourceReference's reference information string-string Dictionary.
/// See the SetupKeynoteDatabaseBrowserData method.
/// </summary>
private static String RefMapDBKeyEntry
{
get
{
return "DBKey";
}
}
/// <summary>
/// Returns the string used to access the server-based relative path to the Revit link file
/// that is stored in an ExternalResourceReference's reference information string-string Dictionary.
/// </summary>
private static String RefMapLinkPathEntry
{
get
{
return "Path";
}
}
/// <summary>
/// Returns a string specifying the version of an external resource available from the server.
/// </summary>
/// <param name="extResRef">The ExternalResourceReference of the resource whose version is requested.</param>
/// <returns>A string containing the version of the specified resource.</returns>
private String GetCurrentlyAvailableResourceVersion(ExternalResourceReference extResRef)
{
IDictionary<string, string> refMap = extResRef.GetReferenceInformation();
if (refMap.ContainsKey(RefMapDBKeyEntry))
{
return KeynotesDatabase.CurrentVersion;
}
else if (refMap.ContainsKey(RefMapLinkPathEntry)) // ... OR it is a Revit link file
{
String serverLinkPath = GetFullServerLinkFilePath(extResRef);
return GetFileVersion(serverLinkPath);
}
// ... OR it is a keynote file (non- French/German cases).
String serverKeynoteFilePath = GetFullServerKeynoteFilePath(extResRef);
return GetFileVersion(serverKeynoteFilePath);
}
/// <summary>
/// Provides Revit's file browser dialog with information for navigating the
/// fictitious database containing French and German keynotes data.
/// </summary>
private void SetupKeynoteDatabaseBrowserData(ExternalResourceBrowserData browserData, String currentCultureName)
{
string folderPath = browserData.FolderPath;
// To make this demonstration simple and clear, this code creates two sub-folders with names hard-coded
// in French and German, and one keynote data source (must have the extension *.txt) under each of
// these sub-folders.
// To make subsequent recognition of these resources easier (in the server's LoadResource method and
// elsewhere), a database "key" is stored in each resource's string-string Dictionary.
if (currentCultureName == "de-DE")
{
if (folderPath == "/") // Top-level
{
browserData.AddSubFolder("Unterordner1");
browserData.AddSubFolder("Unterordner2");
}
else if (folderPath.EndsWith("/Unterordner1"))
{
var refMap = new Dictionary<String, String>();
refMap[RefMapDBKeyEntry] = "1";
browserData.AddResource("Keynotes1_de-DE.txt", KeynotesDatabase.CurrentVersion, refMap);
}
else if (folderPath.EndsWith("/Unterordner2"))
{
var refMap = new Dictionary<String, String>();
refMap[RefMapDBKeyEntry] = "2";
browserData.AddResource("Keynotes2_de-DE.txt", KeynotesDatabase.CurrentVersion, refMap);
}
}
else if (currentCultureName == "fr-FR")
{
if (folderPath == "/") // Top-level
{
browserData.AddSubFolder("Sous-dossier1");
browserData.AddSubFolder("Sous-dossier2");
}
else if (folderPath.EndsWith("/Sous-dossier1"))
{
var refMap = new Dictionary<String, String>();
refMap[RefMapDBKeyEntry] = "3";
browserData.AddResource("Keynotes1_fr-FR.txt", KeynotesDatabase.CurrentVersion, refMap);
}
else if (folderPath.EndsWith("/Sous-dossier2"))
{
var refMap = new Dictionary<String, String>();
refMap[RefMapDBKeyEntry] = "4";
browserData.AddResource("Keynotes2_fr-FR.txt", KeynotesDatabase.CurrentVersion, refMap);
}
}
}
/// <summary>
/// A convenience utility method. For resources obtained from files on the server, we consider
/// the resource version to be the last-modified date of the file.
/// </summary>
/// <param name="filePath">The full path of a file on disk.</param>
/// <returns>The version (last-modified data) of the specified file.</returns>
private String GetFileVersion(String filePath)
{
FileInfo fileInfo = new FileInfo(filePath);
DateTime lastModifiedTime = fileInfo.LastWriteTimeUtc;
CultureInfo enUs = new CultureInfo("en-us");
return lastModifiedTime.ToString(enUs);
}
/// <summary>
/// Computes the full path of a ExternalResourceReference's keynote data file location on the server.
/// </summary>
/// <param name="extRef">An ExternalResourceReference for a keynote data file stored on this server.</param>
/// <returns>A string representing the full path to the Revit link resource on the server drive.</returns>
private String GetFullServerKeynoteFilePath(ExternalResourceReference extRef)
{
String inSessionPath = extRef.InSessionPath;
String serverName = GetName();
// As an alternative to using the inSessionPath to determine the actual file path, the
// preferred method is to store the relative server path of the file in the
// ExternalResourceReference's referenceInformation (as is done for links).
// This would be particularly true if you were overriding the default in-session path in
// the GetInSessionPath() method.
String serverKeynoteFilePath = inSessionPath.Replace(serverName + "://", RootFolder + "\\");
return serverKeynoteFilePath;
}
/// <summary>
/// <para>Provides Revit's file browser dialog with information for navigating a
/// directory stucture of files available from the server.</para>
/// <para>In this example implementation, the server simply echoes the directories
/// and files that it locates under its RootFolder (subject to the appropriate file
/// type filter pattern). </para>
/// </summary>
private void SetupFileBasedBrowserData(ExternalResourceBrowserData browserData)
{
ExternalResourceMatchOptions matchOptions = browserData.GetMatchOptions();
// filter some resources out by specified filter pattern
ExternalResourceType resourceType = matchOptions.ResourceType;
string filterPattern = resourceType == ExternalResourceTypes.BuiltInExternalResourceTypes.KeynoteTable
? "*.txt"
: "*.rvt";
// Expose a "real" directory structure for the user to browse.
// The server's root folder is specified in the RootFolder property.
string folderPath = browserData.FolderPath;
string path = RootFolder + folderPath.Replace('/', '\\');
if (Directory.Exists(path))
{
DirectoryInfo dir = new DirectoryInfo(path);
DirectoryInfo[] subDirs = dir.GetDirectories();
foreach (DirectoryInfo subDir in subDirs)
{
browserData.AddSubFolder(subDir.Name);
}
FileInfo[] subFiles = dir.GetFiles(filterPattern, SearchOption.TopDirectoryOnly);
foreach (FileInfo file in subFiles)
{
if (resourceType == ExternalResourceTypes.BuiltInExternalResourceTypes.KeynoteTable)
browserData.AddResource(file.Name, GetFileVersion(file.FullName));
else
{
var refMap = new Dictionary<String, String>();
// Relative Path of Link File is Stored in the ExternalResourceReference that
// Will Be Addded to the BrowserData.
refMap[RefMapLinkPathEntry] = folderPath.TrimEnd('/') + '/' + file.Name;
browserData.AddResource(file.Name, GetFileVersion(file.FullName), refMap);
}
}
}
else
{
throw new ArgumentException("Path is invalid");
}
}
/// <summary>
/// Loads the keynote data resources, either from the fictitious French/German database, or from a file.
/// </summary>
/// <param name="resourceReference">An ExternalResourceReference identifying which particular resource to load.</param>
/// <param name="loadContent">An ExternalResourceLoadContent object that will be populated with load data by the
/// server. There are different subclasses of ExternalResourceLoadContent for different ExternalResourceTypes.</param>
private void LoadKeynoteDataResource(ExternalResourceReference resourceReference, ExternalResourceLoadContent loadContent)
{
KeyBasedTreeEntriesLoadContent kdrlc = (KeyBasedTreeEntriesLoadContent)loadContent;
if (kdrlc == null)
throw new ArgumentException("Wrong type of ExternalResourceLoadContent (expecting a KeyBasedTreeEntriesLoadContent) for keynote data.", "loadContent");
kdrlc.Reset();
// Either the ExternalResourceReference has a valid database key (German/French case) ...
IDictionary<string, string> refMap = resourceReference.GetReferenceInformation();
if (refMap.ContainsKey(RefMapDBKeyEntry))
{
try
{
KeynotesDatabase.LoadKeynoteEntries(refMap[RefMapDBKeyEntry], ref kdrlc);
kdrlc.BuildEntries();
loadContent.LoadStatus = ExternalResourceLoadStatus.Success;
}
catch (ArgumentOutOfRangeException)
{
}
catch (ArgumentNullException)
{
}
}
else
{
// ... OR it is a real file (all other cases).
String serverKeynoteFilePath = GetFullServerKeynoteFilePath(resourceReference);
bool doesReadingSucceed = KeynoteEntries.LoadKeynoteEntriesFromFile(serverKeynoteFilePath, kdrlc);
if (doesReadingSucceed)
{
kdrlc.BuildEntries();
loadContent.LoadStatus = ExternalResourceLoadStatus.Success;
}
}
}
/// <summary>
/// Loads a specified Revit link external resource.
/// </summary>
/// <param name="resourceReference">An ExternalResourceReference identifying which particular resource to load.</param>
/// <param name="loadContent">An ExternalResourceLoadContent object that will be populated with load data by the
/// server. There are different subclasses of ExternalResourceLoadContent for different ExternalResourceTypes.</param>
private void LoadRevitLink(ExternalResourceReference resourceReference, ExternalResourceLoadContent loadContent)
{
LinkLoadContent linkLoadContent = (LinkLoadContent)loadContent;
if (linkLoadContent == null)
throw new ArgumentException("Wrong type of ExternalResourceLoadContent (expecting a LinkLoadContent) for Revit links.", "loadContent");
try
{
// Copy the file from the path under the server "root" folder to a secret "cache" folder on the users machine
String fullCachedPath = GetFullLinkCachedFilePath(resourceReference);
String cacheFolder = System.IO.Path.GetDirectoryName(fullCachedPath);
if (!System.IO.Directory.Exists(cacheFolder))
{
System.IO.Directory.CreateDirectory(cacheFolder);
}
String serverLinkPath = GetFullServerLinkFilePath(resourceReference);
System.IO.File.Copy(serverLinkPath, fullCachedPath, true); // Overwrite
ModelPath linksPath = ModelPathUtils.ConvertUserVisiblePathToModelPath(fullCachedPath);
linkLoadContent.SetLinkDataPath(linksPath);
loadContent.LoadStatus = ExternalResourceLoadStatus.Success;
}
catch (System.Exception)
{
}
}
/// <summary>
/// Computes the full path of a Revit link ExternalResourceReference's location on the server.
/// </summary>
/// <param name="resource">An ExternalResourceReference for a Revit link stored on this server.</param>
/// <returns>A string representing the full path to the Revit link resource on the server drive.</returns>
public static String GetFullServerLinkFilePath(ExternalResourceReference resource)
{
if (resource == null)
return "";
IDictionary<String, String> refMap = resource.GetReferenceInformation();
if (!refMap.ContainsKey(RefMapLinkPathEntry))
return "";
return RootFolder + resource.GetReferenceInformation()[RefMapLinkPathEntry].Replace("/", "\\");
}
/// <summary>
/// <para>Returns the path of the root folder of the cache where the server will make
/// local copies of Revit links. For this example server, the cache root folder is
/// simply a directory immediately under the folder where the DLL for this assembly is
/// located.</para>
/// </summary>
private static String LocalLinkCacheFolder
{
get
{
string assemblyFolder = Path.GetDirectoryName(System.Reflection.Assembly.GetExecutingAssembly().Location);
string cacheRootFolderName = assemblyFolder + "\\SampleResourceServerLinkCache";
DirectoryInfo cacheRootFolder = new DirectoryInfo(cacheRootFolderName);
if (!cacheRootFolder.Exists)
cacheRootFolder.Create();
return cacheRootFolderName;
}
}
/// <summary>
/// <para>Computes the full path on the end user's local drive where an
/// ExternalResourceReference's link model will be copied when the user loads the
/// link from the server.</para>
///<para>The paths of the local copies relative to this cache root folder will be the
/// same as the paths of the original server copies relative to the Revit links
/// to the root folder on the (compare this method with the GetFullServerLinkFilePath method).</para>
/// </summary>
/// <param name="resource">An ExternalResourceReference for a Revit link stored on this server.</param>
/// <returns>A string representing the full path to the link model on the end user's local drive.</returns>
public static String GetFullLinkCachedFilePath(ExternalResourceReference resource)
{
if (resource == null)
return "";
IDictionary<String, String> refMap = resource.GetReferenceInformation();
if (!refMap.ContainsKey(RefMapLinkPathEntry))
return "";
return LocalLinkCacheFolder + resource.GetReferenceInformation()[RefMapLinkPathEntry].Replace("/", "\\");
}
#endregion SampleExternalResourceDBServer Implementation
#region SampleExternalResourceDBServer Member Variables
#endregion SampleExternalResourceDBServer Member Variables
}
}
ServerInterfaceExtensionsForRevitLinks.cs
//
// (C) Copyright 2003-2019 by Autodesk, Inc.
//
// Permission to use, copy, modify, and distribute this software in
// object code form for any purpose and without fee is hereby granted,
// provided that the above copyright notice appears in all copies and
// that both that copyright notice and the limited warranty and
// restricted rights notice below appear in all supporting
// documentation.
//
// AUTODESK PROVIDES THIS PROGRAM "AS IS" AND WITH ALL FAULTS.
// AUTODESK SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTY OF
// MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE. AUTODESK, INC.
// DOES NOT WARRANT THAT THE OPERATION OF THE PROGRAM WILL BE
// UNINTERRUPTED OR ERROR FREE.
//
// Use, duplication, or disclosure by the U.S. Government is subject to
// restrictions set forth in FAR 52.227-19 (Commercial Computer
// Software - Restricted Rights) and DFAR 252.227-7013(c)(1)(ii)
// (Rights in Technical Data and Computer Software), as applicable.
//
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Autodesk.Revit;
using Autodesk.Revit.DB;
namespace Revit.SDK.Samples.ExternalResourceDBServer.CS
{
/// <summary>
/// Extension operator to support "Open (and Unload)" command.
/// Revit will call this method to determine the location of the locally-cached copy
/// of the linked model, and will open that copy directly.
/// </summary>
//=====================================================================================
public class GetLinkPathForOpen : IGetLocalPathForOpenCallback
{
/// <summary>
/// This implementation simply retrieves the same local file name that the server
/// uses when first copying the link document to the user's machine.
/// </summary>
public string GetLocalPathForOpen(ExternalResourceReference desiredReference)
{
return SampleExternalResourceDBServer.GetFullLinkCachedFilePath(desiredReference);
}
}
/// <summary>
/// Extension operator to support handle updates when the user saves new shared coordinates in the
/// local copy of a link.
/// </summary>
//=====================================================================================
public class LocalLinkSharedCoordinatesSaved : IOnLocalLinkSharedCoordinatesSavedCallback
{
/// <summary>
/// When the user updates the shared coordinates in the link model, Revit calls this
/// method. In this implementation, the updated local version of the link on the user's
/// machine is uploaded (copied) back to the server location.
/// </summary>
public void OnLocalLinkSharedCoordinatesSaved(ExternalResourceReference changedReference)
{
string localLinkPath = SampleExternalResourceDBServer.GetFullLinkCachedFilePath(changedReference);
string fullServerPath = SampleExternalResourceDBServer.GetFullServerLinkFilePath(changedReference);
String serverDirectoryName = System.IO.Path.GetDirectoryName(fullServerPath);
if (!System.IO.Directory.Exists(serverDirectoryName))
{
System.IO.Directory.CreateDirectory(serverDirectoryName);
}
System.IO.File.Copy(localLinkPath, fullServerPath, true); // Overwrite
}
}
}
